Duschrinne Pro Komplettset mit Abdeckungsrost Lochung 1100mm
€350.90*
In Stock
Delivery time 5-7 working days
TREVI PRO SHOWER CHANNEL
ETAG022-2 tested, abP tested

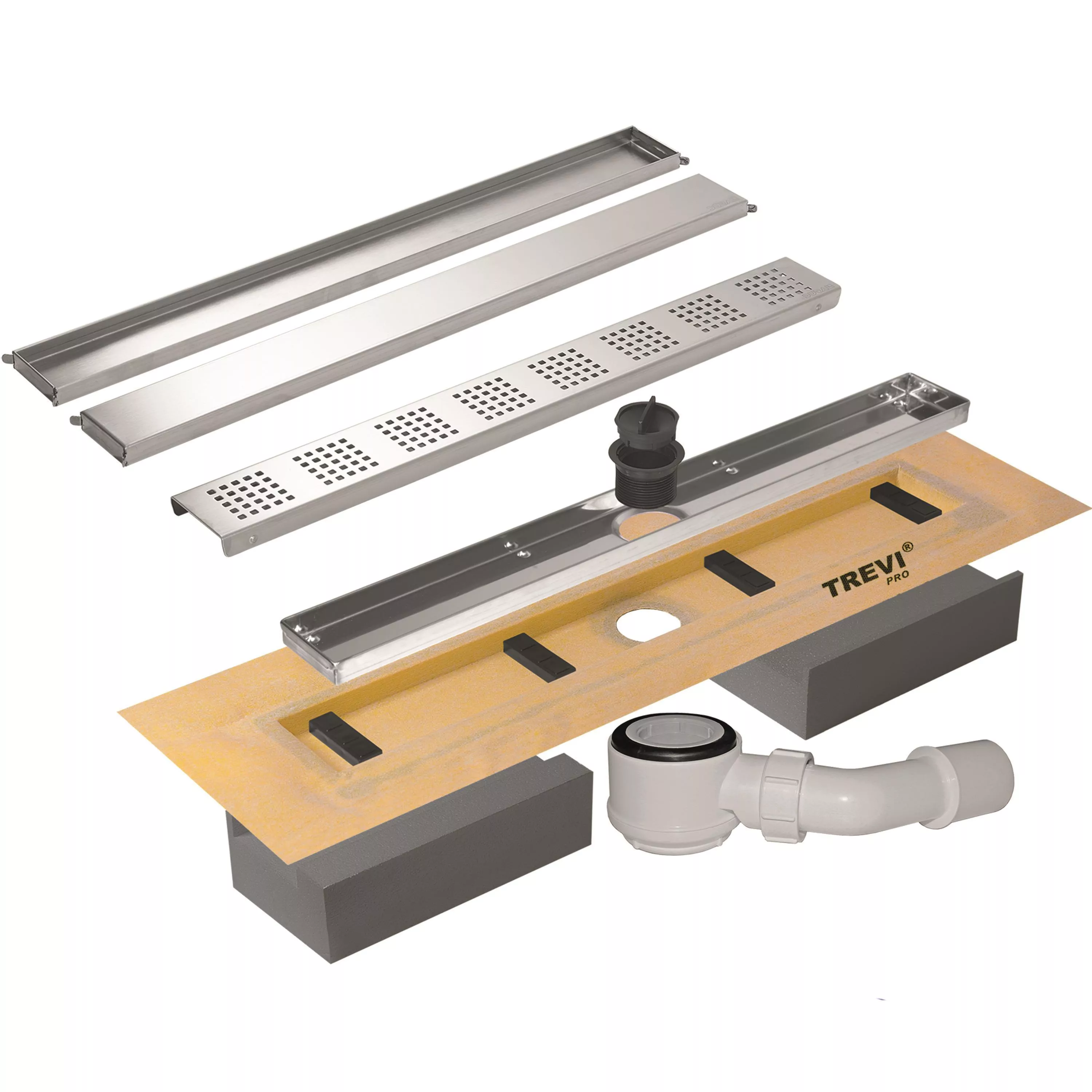

Technical data:
• Gutter support: Galvanized sheet steel with mounting block made of EPS
• Gutter shell: stainless steel V2A (1.4301)
• Sealing sleeve: alkaline-resistant polypropylene (PP)
• Drain: Polypropylene (PP) • Drain height: 65 mm
• Load classification: K3 (max. 300 kg)
• Pipe connection: DN 50
• Drainage performance: DIN EN 1253 (0.5 L/sec. or > 0.72 L/sec.)
• Odor trap height: DIN EN 1253 (< 50 or > 50 mm)
• Cover gratings: perforated or tile recess
• lowest installation height: 88 mm
Login
Questions & Answers (0)
Every tile and every mosaic have different requirements for trimming, laying and und processing due to individual material characteristics and usage conditions. Please ask a local expert for correct and secure laying of your mosaics or tiles. We are not liable for unprofessional usage and faulty workmanship of constructions materials.
